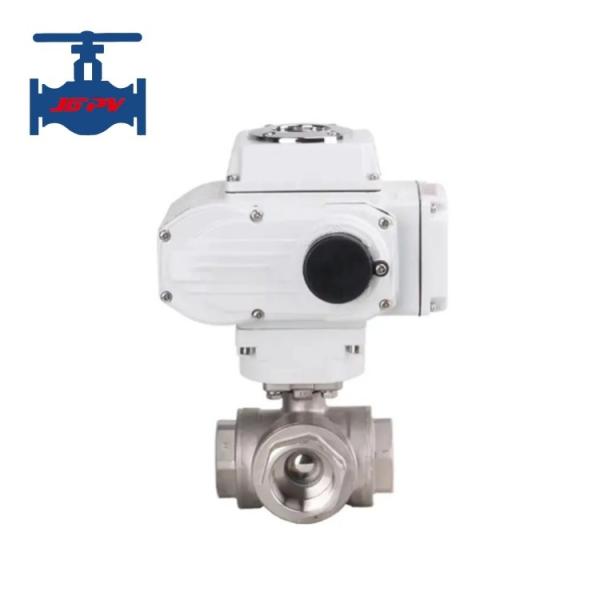

Medium Type 3-WAY Electric Ball Valve For Steam And Oil Standard Performance

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 100pcs per month

Delivery Time : 14 days

Packaging Details : Plywood box safety packing

Application : General

Medium Type : Water, steam and oil etc.

Mounting Type : Direct Mount

Standard Or Non-Standard : Standard

Flow way : two way

Actuation : Manual, Electric, Pneumatic,Automatic

Sealing Performance : Sealing

Working Temperature : Normal Temperature And High Temperature

Pressure Application : Normal Pressure

Quality Warranty : 18 Months

Contact Now

Highlight: 3-WAY electric ball valve


Product introduction:


Three way ball valves are available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.


Product technical parameters:


Nominal Diameter DN (mm)

15~100

Nominal Pressure PN (MPa)

1.6

Test Pressure (MPa)

Strength (water)

2.4

Enclose (Water)

1.76

Main Components

Body

WCB/CF8/CF8M

Valve ball

Stainless steel/Carbon steel

Seat

PTFE

Packing

Soft graphite

Shaft

2Cr13

Handle

Ductile iron

Working temperature

≤150℃

Medium suitable

Water, oil, steam


Product features:


1. The three-way ball valve features a compact structure, rapid opening and closing, and low fluid resistance.

2. After the system is depressurized, maintenance can be carried out without removing the entire valve body, saving time

and cost.

3. The four-way valve seats of the three-way ball valve are all made of PTFE, providing good sealing performance.

4. The three-way ball valve can be manufactured with an L-type port or a T-type port, and users can select suitable products

according to their needs.
